Truist Park

SNA pixel count icon

Total Pixels

21.4 Million

SNA pixel pitch icon

Pixel Pitch

2.9-10 mm

SNA display count icon 2

Display Count

10

SNA sf icon

Square feet

13,756

Atlanta Braves' TRuist Park

In partnership with SNA Displays, Truist Park and the Atlanta Braves added numerous large-format LED video displays leading up to Major League Baseball’s 2025 season. The highlight of the video enhancement is the upgraded main Center Field BravesVision videoboard.

Select upgrades were scheduled to be complete ahead of the 2025 MLB season, with more upgrades to come before the 2026 season. In total, SNA Displays was awarded approximately 19,000 square feet of LED display technology

WJHW provided consultation services for the Braves and oversaw the technology selection phase, choosing SNA Displays’ to manufacture and integrate the  EMPIRE Exterior™ LED video displays. SNA Displays also provided demolition and removal services for previous displays as part of its scope.

Read more: Atlanta Braves' Truist Park Gets Video Display Upgrades

Truist Park Display Summary
Display Pixel Pitch Size (H x W) Resolution
Main Center Field BravesVision Videoboard 10 mm 64'7" x 120'8" 1,986 x 3,680
400-Level Ribbon (First Base) 8 mm 3'1" x 411' 120 x 15,660
400-Level Ribbon (Third Base) 8 mm 3'1" x 478'8" 120 x 18,240
The Coca-Cola Corner Ribbon 10 mm 3'11" x 123' 120 x 3,750
Blue Moon Beer Garden 6 mm 8'4" x 20'6" 420 x 1,040
Outfield Market 2.9 mm 11'6" x 41' 1,176 x 4,200
Children’s Healthcare of Atlanta Park 6.6 mm 12'6" x 38'6" 576 x 1,776
Good Game Restaurant & Bar 6.6 mm 12'7" x 23'1" 576 x 1,056
Shake Shack 6.6 mm 15'10" x 45'8" 1,008 x 2,280
Truist Deck Parking Garage 6.6 mm 29'11" x 17'11" 1,368 x 912

In the Stadium

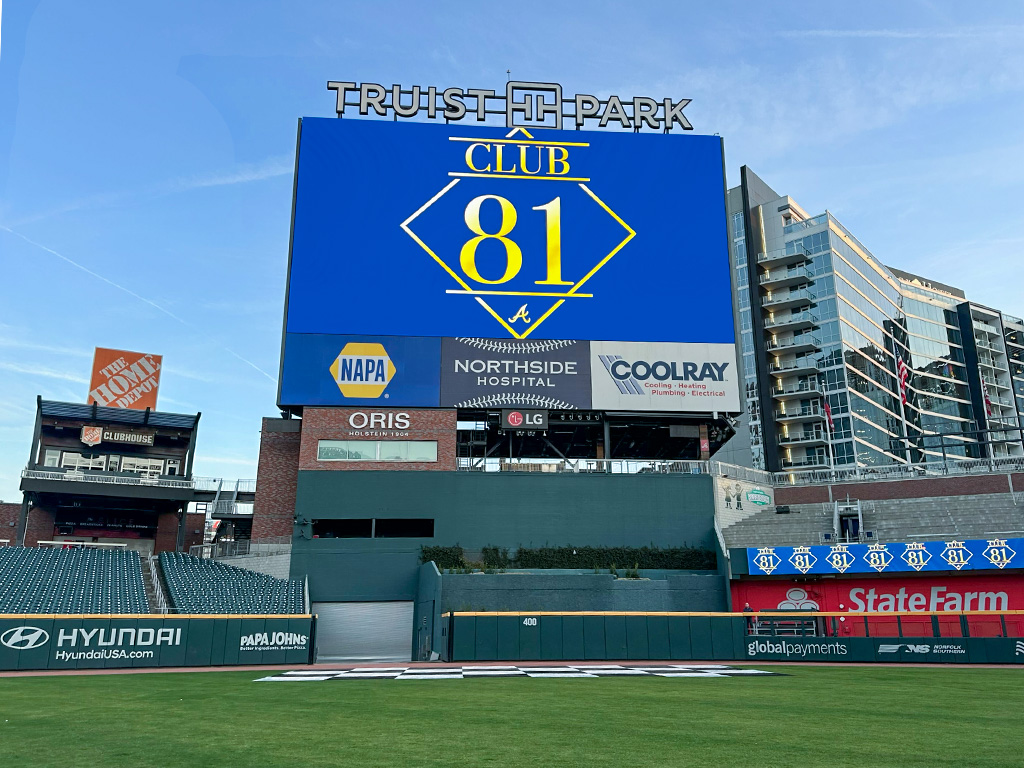

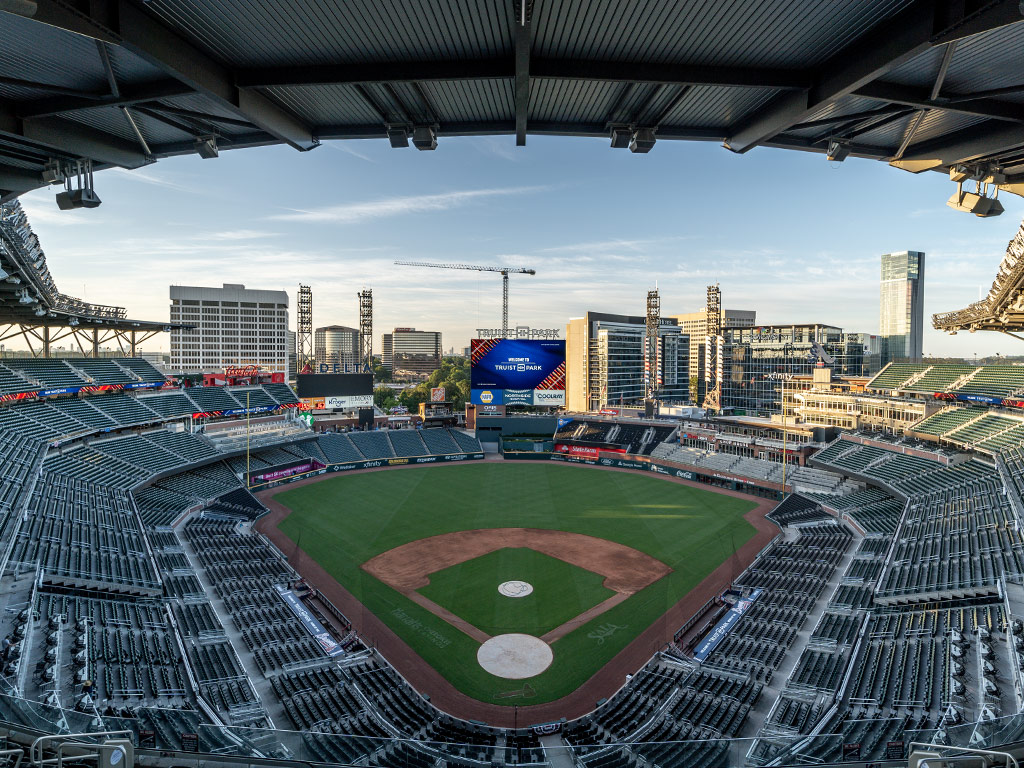

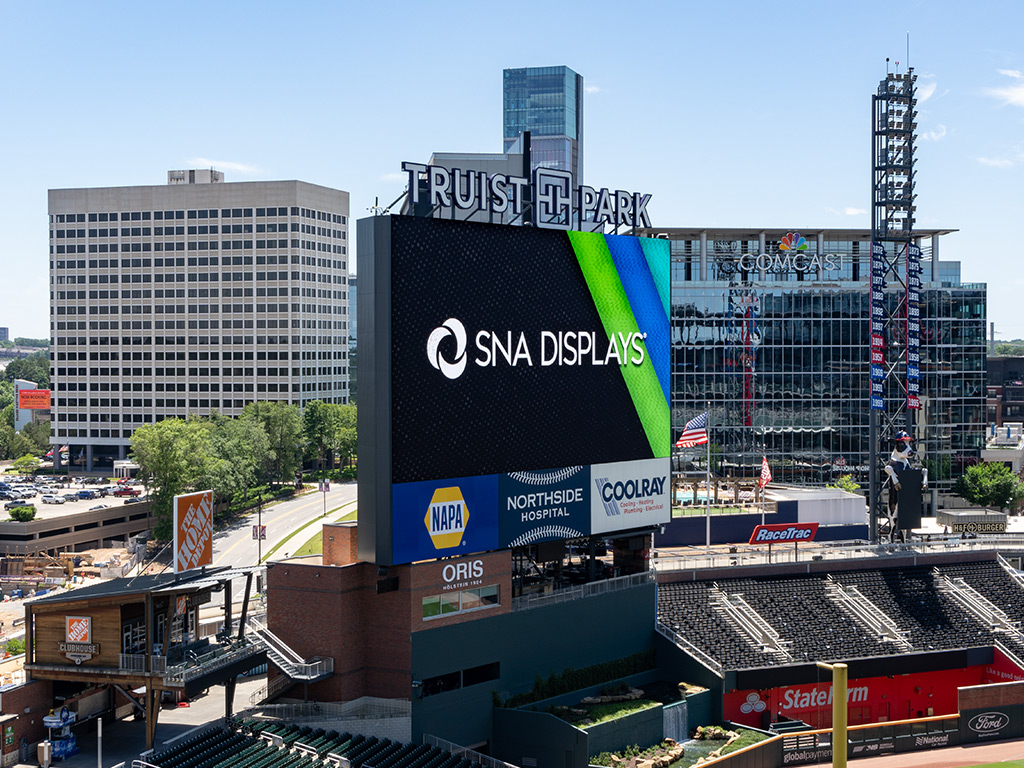

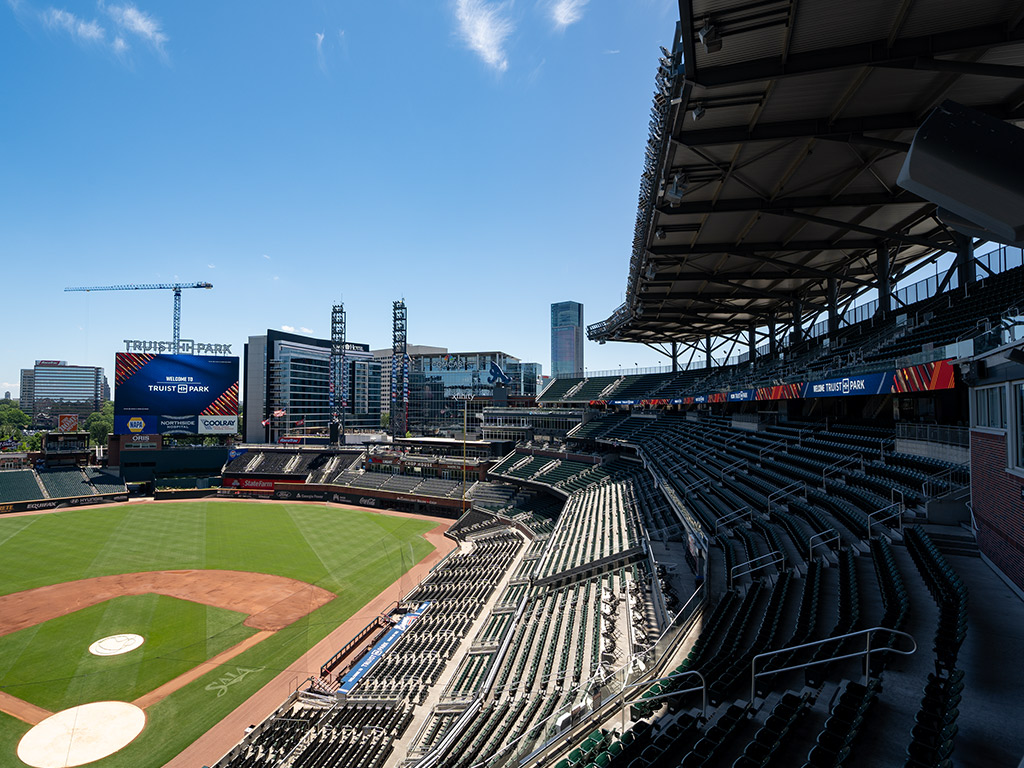

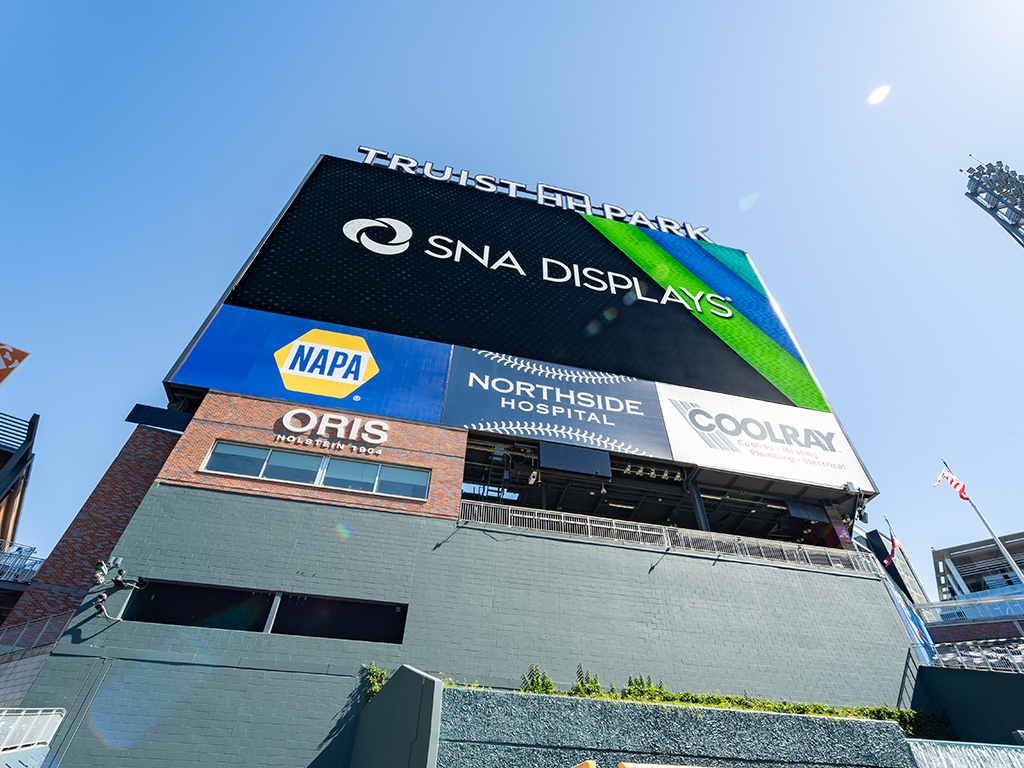

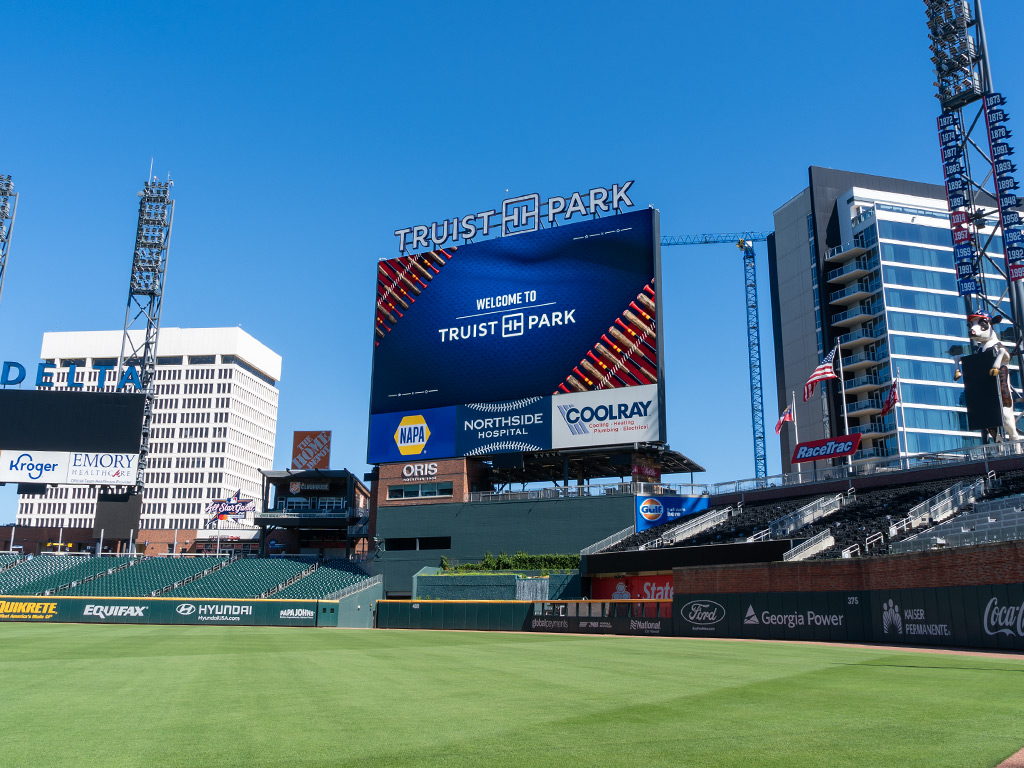

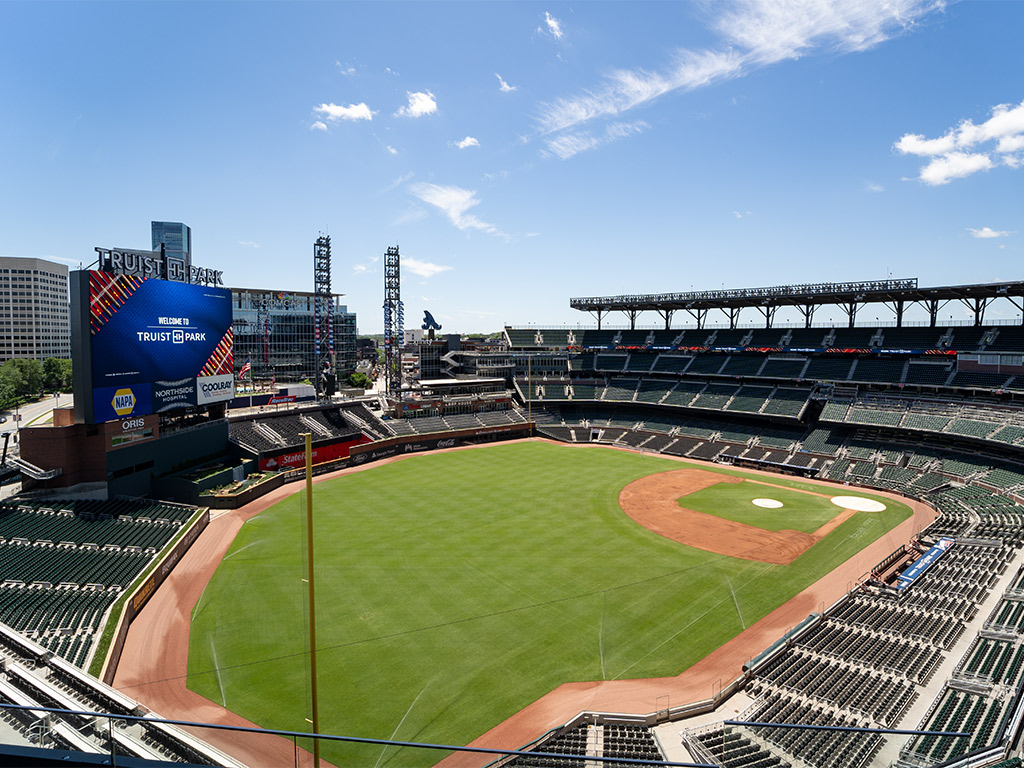

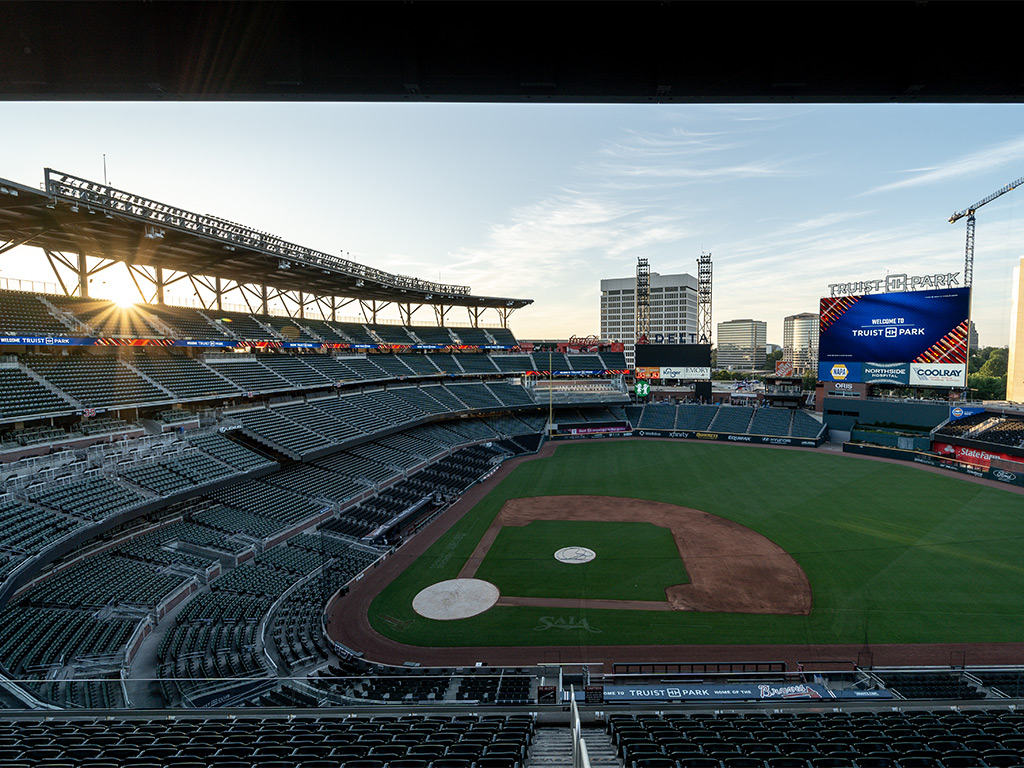

At 65' high x 121' wide, the main center field BravesVision videoboard is roughly the same size as its predecessor but sports a 10 mm pixel pitch, giving it approximately two-and-a-half times the number of pixels. The enormous centerfield LED screen has a crisp resolution of  1,968 x 3,680 and processes more than 7.2 million pixels. It was custom-engineered to provide improved operational service and maintenance access for the Braves’ audio-visual support team.

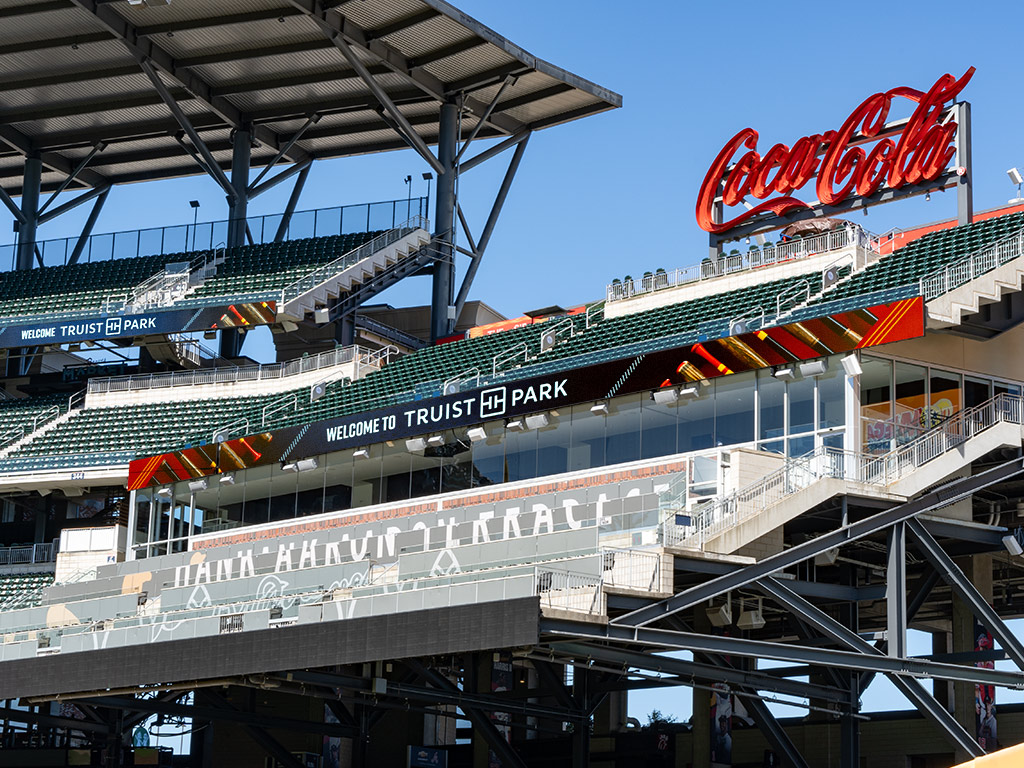

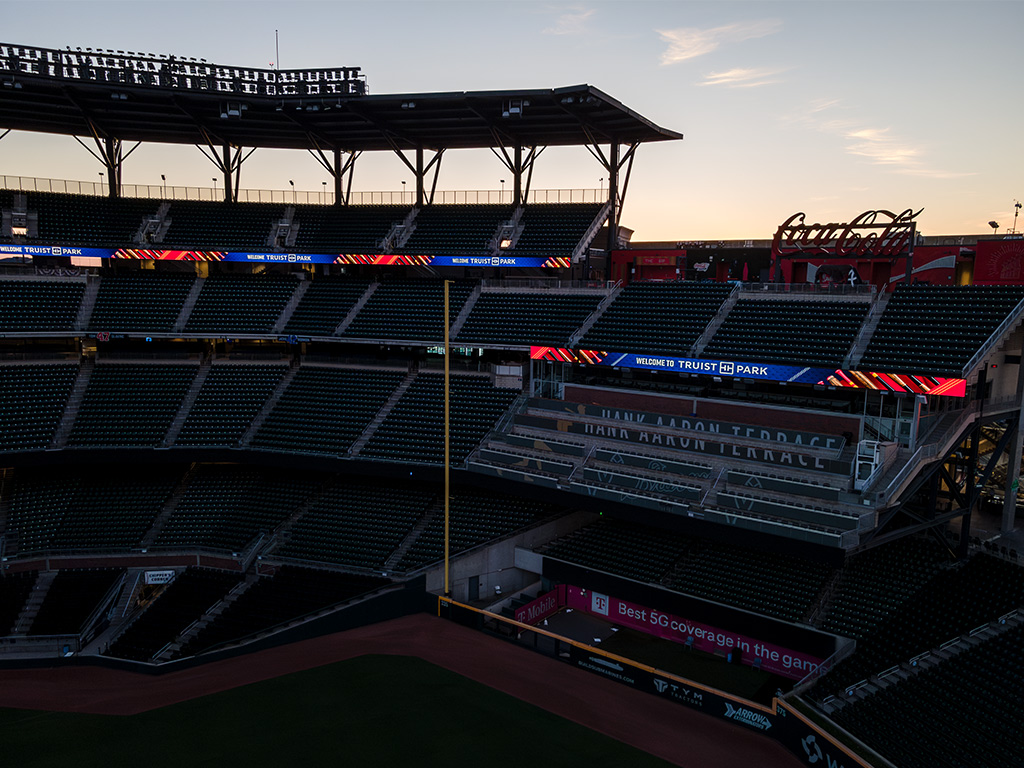

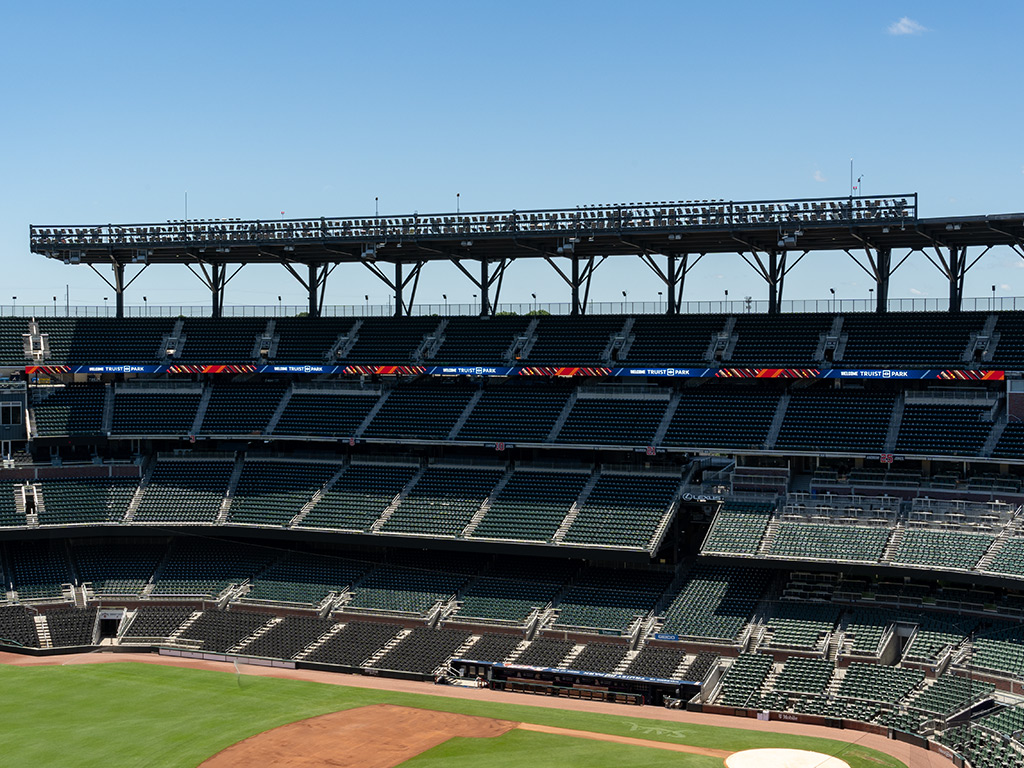

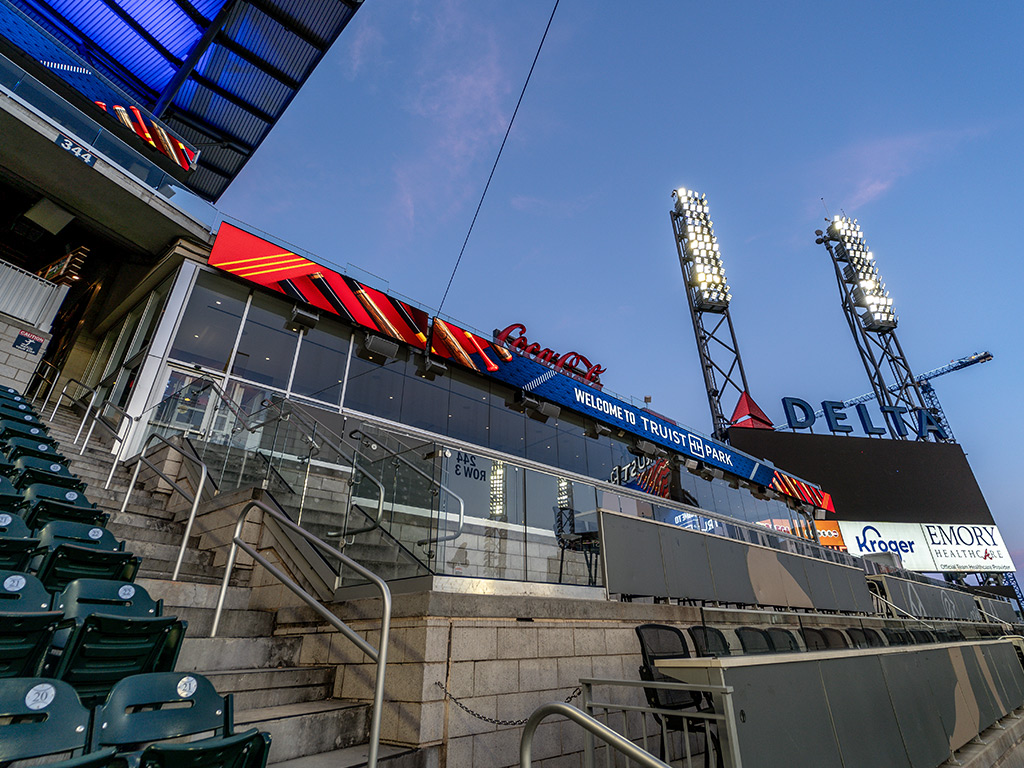

The stadium’s 400-level fascia video ribbon that runs along the first base side is just over 3 feet high and extends 411 feet. The other ribbon extends 479 feet along the third base side of the park’s 400 level. Both feature an 8 mm pixel pitch. The 300-level LED ribbon in The Coca-Cola Corner is 3' x 123' and has a 10 mm pitch.

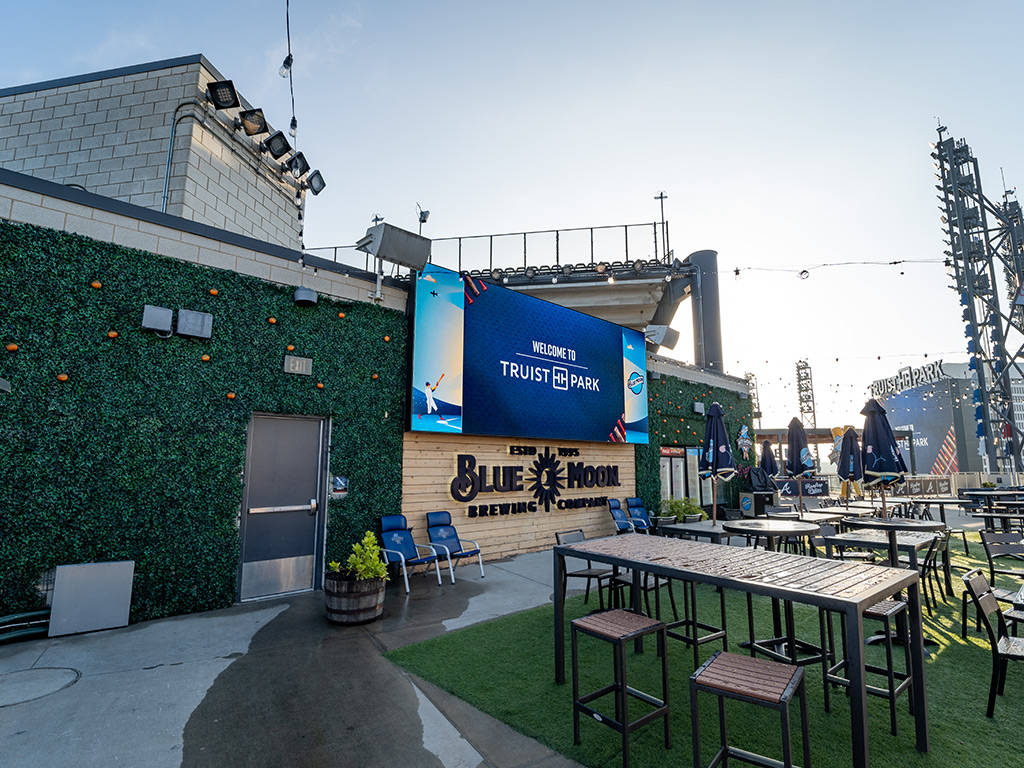

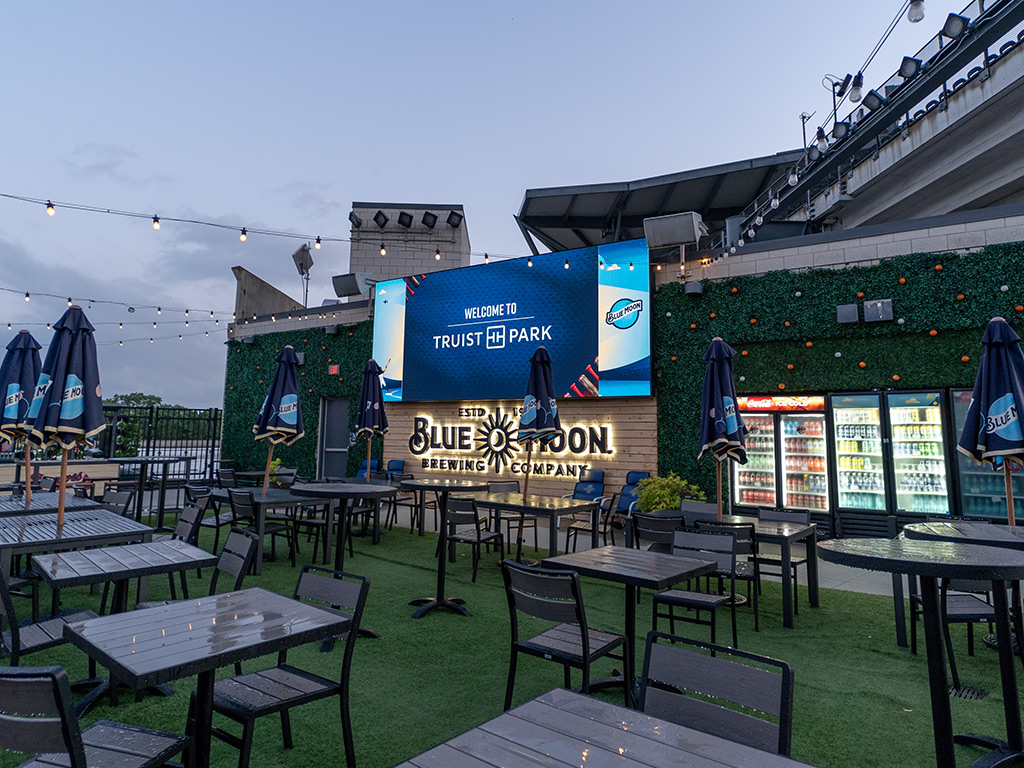

Additionally, SNA Displays integrated other displays at some of the ballpark's numerous amenities. One display located at the Blue Moon Beer Garden at The Rooftop in right field is a 6 mm outdoor video display that measures 8'4" x 20'6" (420 x 1,040 pixels).

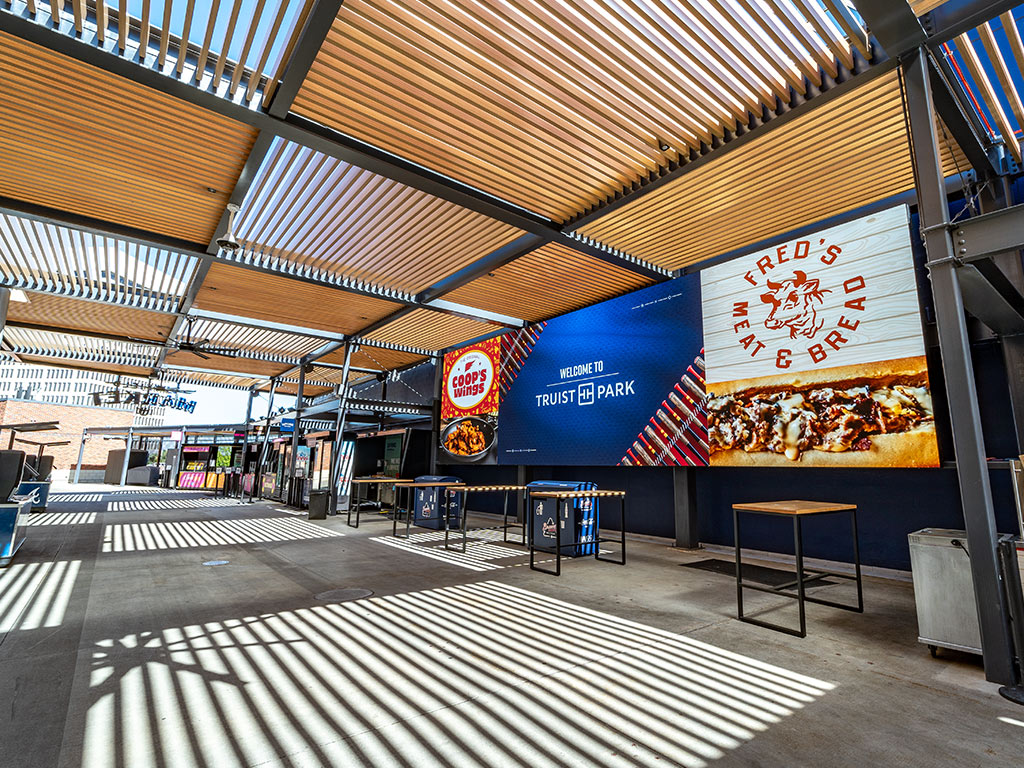

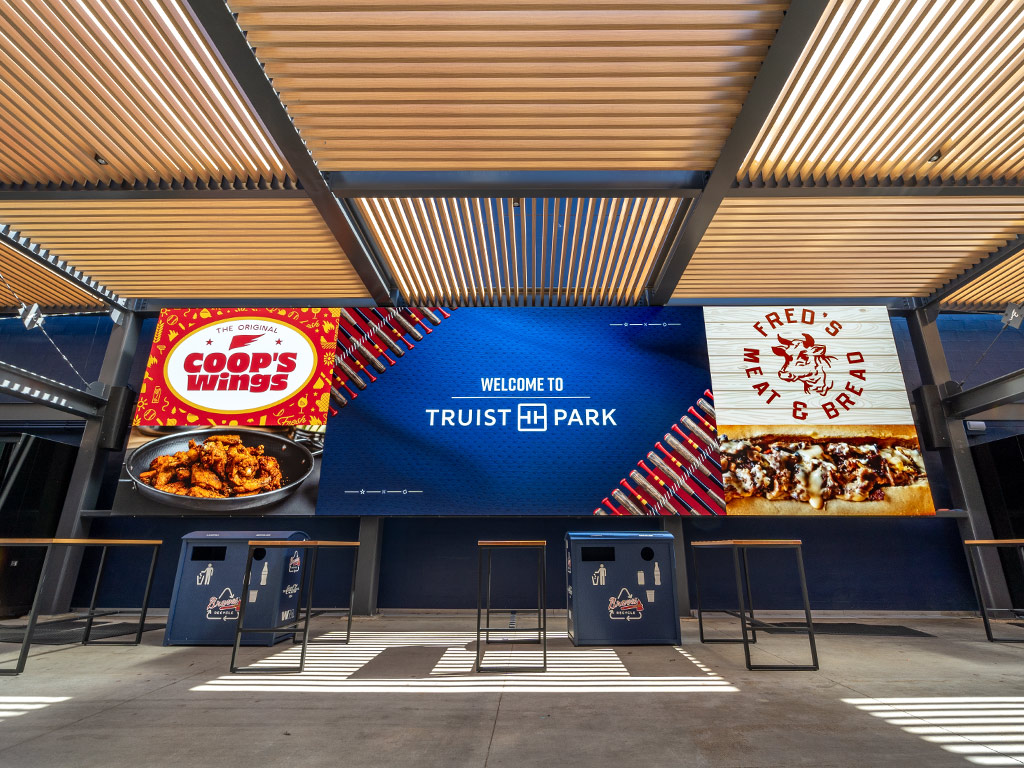

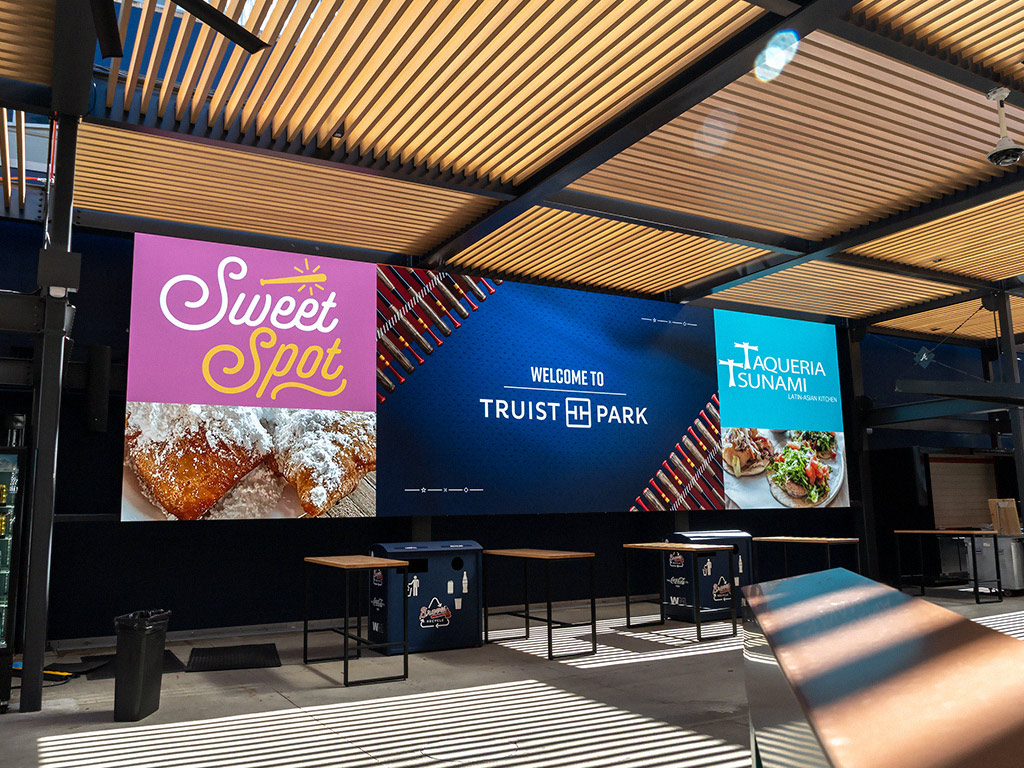

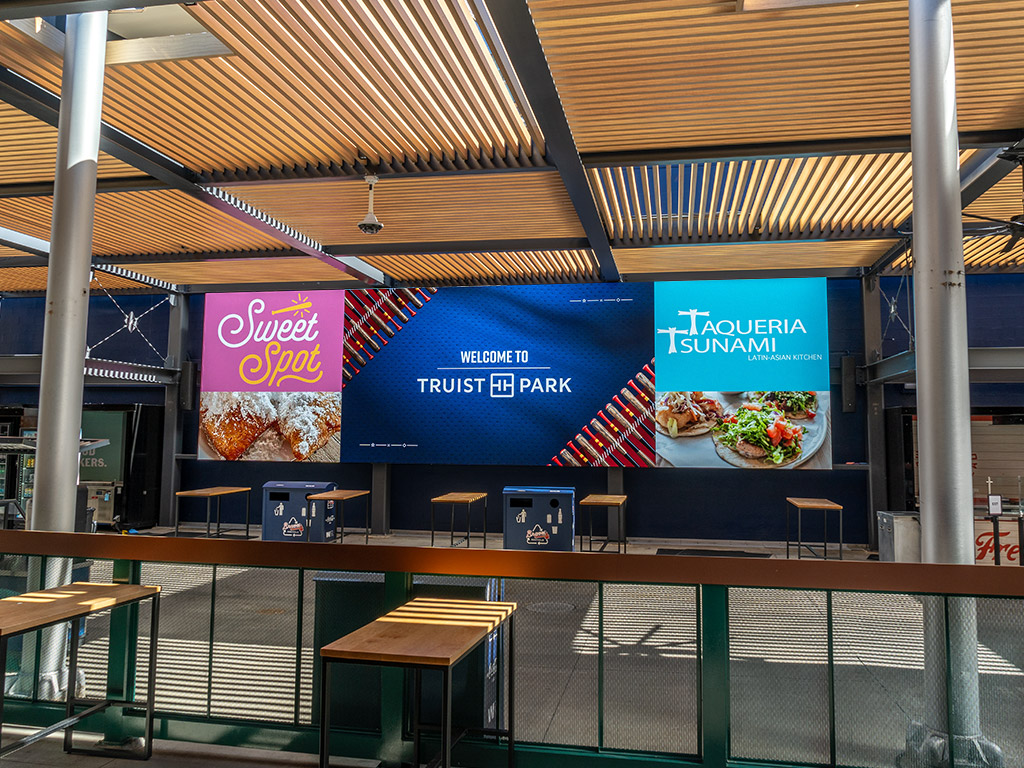

Another video display is the 2.9 mm LED screen at the Outfield Market in the right field concourse. This LED screen, which sports a very tight pitch for an outdoor display, is 11'6" tall and 41' wide with a resolution of 1,176 x 4,200.

The Battery ATLANTA

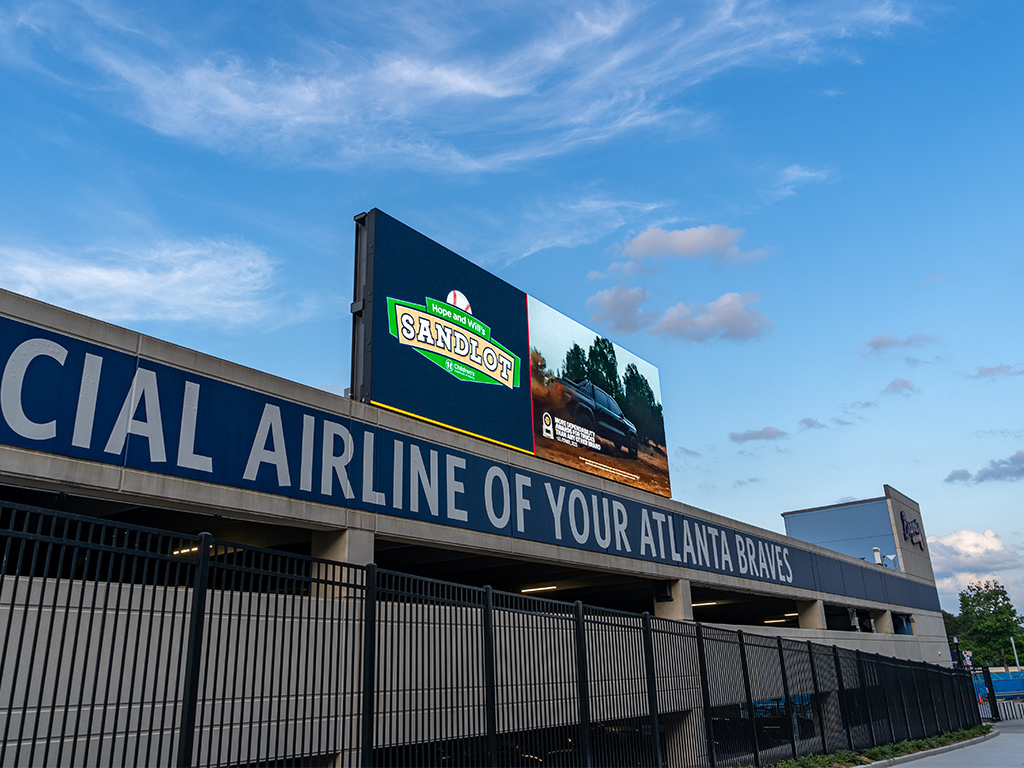

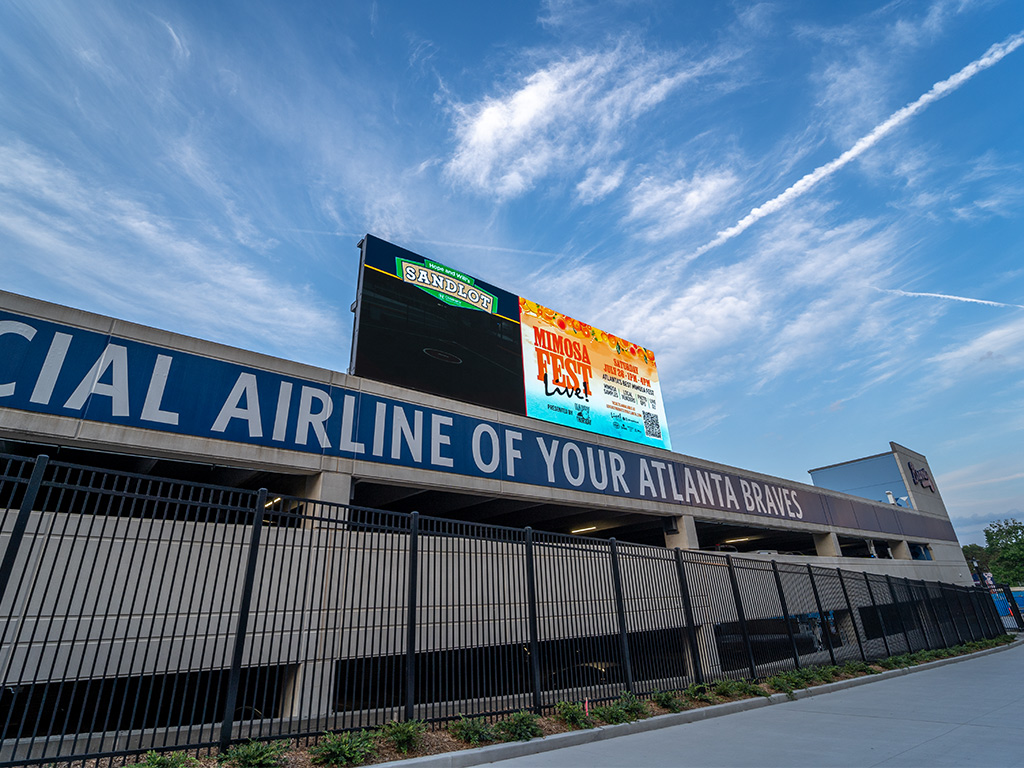

Scheduled for completion before the 2025 MLB All-Star Game, SNA Displays is installing several displays at The Battery Atlanta. This year-round mixed-use entertainment destination adjacent to the ballpark will feature multiple video displays to engage fans and patrons. At the west end, tenant Shake Shack will use an ultra-wide 46' display above the entryway to engage fans with live video and other special events. LED displays have also been added to the upper façade of Top Golf’s Good Game restaurant and bar as well as the Truist Deck parking garage at the east end of The Battery facing pedestrian walkways and Windy Ridge Road.

Children's Healthcare of Atlanta Park

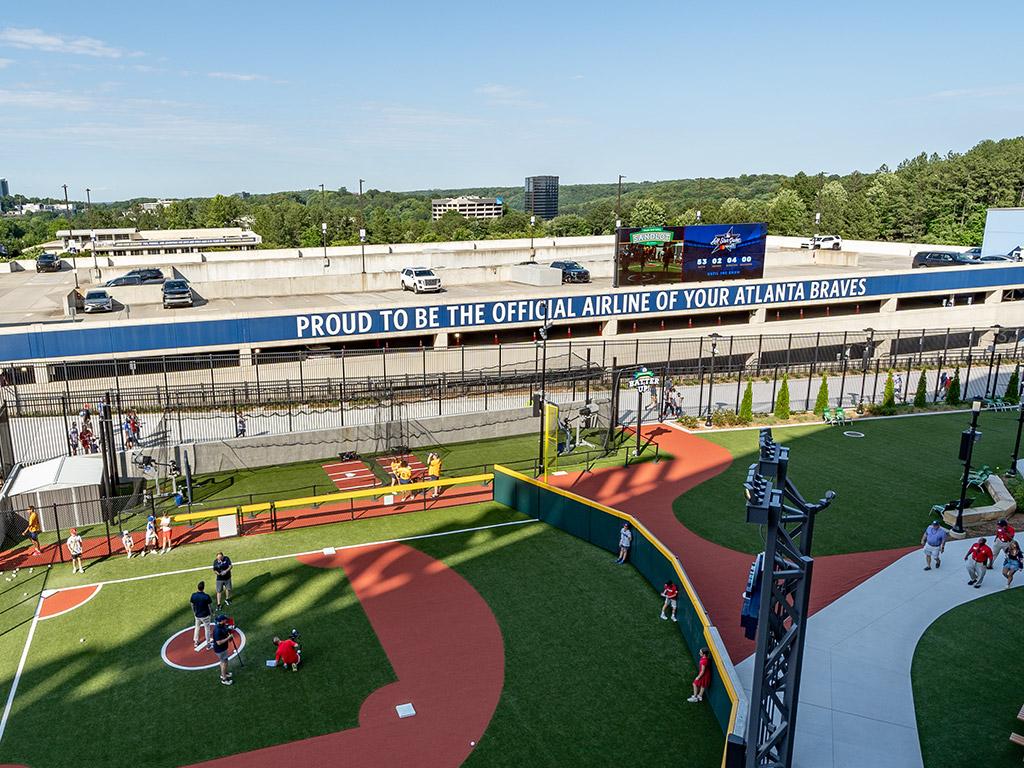

The Children’s Healthcare of Atlanta Park is a reimagined and expanded family space located outside Left Field Plaza between the Left Field and Third Base gates. The park, designed to accommodate double the capacity of the former Hope & Will’s Sandlot, features a 12’6” tall x 38’6” wide LED videoboard.

More To Come

SNA Displays will add a 50' x 90' LED board and an 11' x 20' LED display, both 10 mm, prior to the  2026 season.





Product

Project Location

755 Battery Avenue, Atlanta, GA
