Michigan State University Breslin Center

SNA pixel count icon

Total Pixels

11.2 Million

SNA pixel pitch icon

Pixel Pitch

3.9 mm–⁠10 mm

SNA display count icon 2

Display Count

3

SNA sf icon

Square feet

4,171

Michigan State University Breslin Center

SNA Displays upgraded the in-bowl LED displays at Michigan State University’s Jack Breslin Student Events Center, home of the Spartans basketball and volleyball programs.

MSU Breslin Center Display Summary

LED Centerhung (long -2) 4 mm BOLD™ Interior 14’2” x 31'6" 1,080 x 2,400
LED Centerhung (short -2) 4 mm BOLD™ Interior 14’2” x 20'6" 1,080 x 1,560
LED Ribbon Board (360⁰) 10 mm BOLD™ Interior 3’8” x 728’7” 112 x 22,208
LED Courtside Table 3.9 mm BOLD™ Interior 2’6” x 20’3” 192 x 640

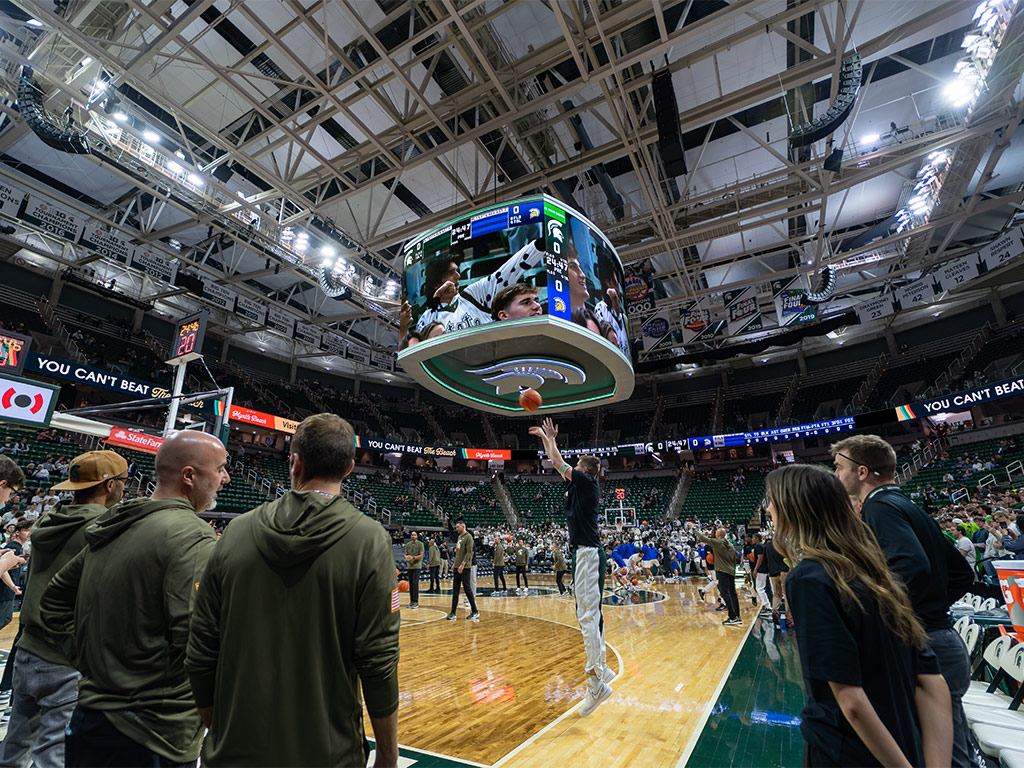

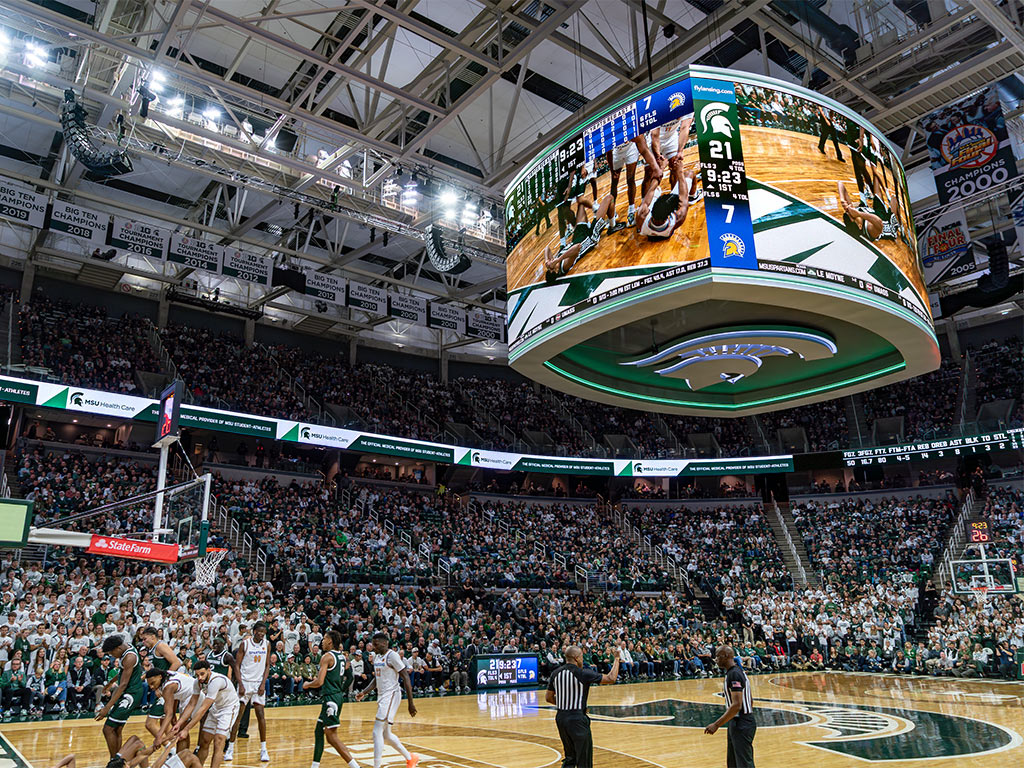

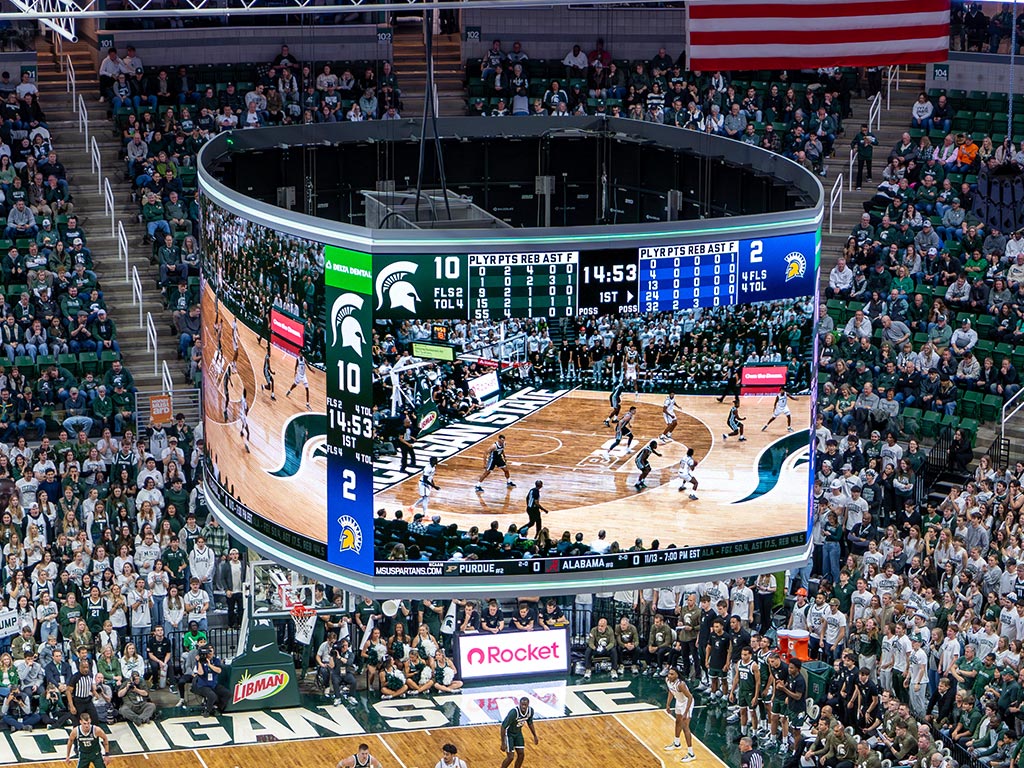

The multi-use arena’s focal point is a giant centerhung video display system that was completely replaced with a new structure, hoist system, and LED video technology from SNA Displays. The centerhung is made up of of four slightly convex 4 mm BOLD Interior™ LED screens tightly joined together to create a seamless digital canvas that offers 360-degree viewing. Unwrapped, the videoboards dimensions would be 14' x 104'(1,080 x 7,920 pixels). The display system processes more than 8.5 million pixels.

Additionally, the centerhung includes cladding and LED strip lighting by Phoenix Signs as well as a large backlit Spartans logo facing down toward the court.

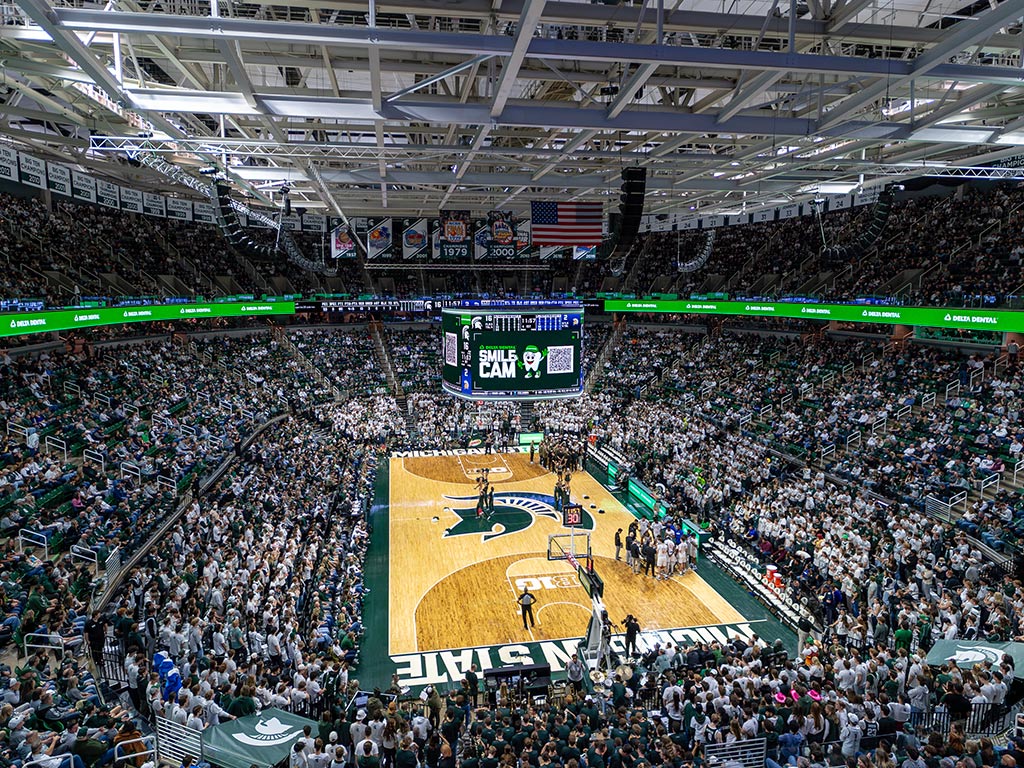

SNA Displays also provided a 360-degree LED ribbon board for the Breslin Center. At approximately four feet tall, the 10 mm ribbon display extends all the way around the arena’s bowl, more than 725 linear feet (112 x 22,208 pixels).

The arena’s digital signage package also includes a courtside table equipped with a 3.9 mm BOLD™ Interior LED video display.

Owner's representative and technology consultant Anthony James Partners provided comprehensive design and procurement services, supporting MSU in selecting SNA Displays to manufacture and install the digital display network.

See also: MSU Breslin Center news release.

Products

Project Location

534 Birch Road, East Lansing, MI
