International Monetary Fund (IMF)

SNA pixel count icon

Total Pixels

28.6 Million

SNA pixel pitch icon

Pixel Pitch

1.25 mm, 2.5 mm

SNA display count icon 2

Display Count

3

SNA sf icon

Square feet

1,504

New Video Walls at International Monetary Fund Buildings

SNA Displays completed a multi-phase project to manufacture and install a series of interior LED displays inside International Monetary Fund (IMF) offices at 1900 Pennsylvania Avenue, NW and 700 19th Street, NW in downtown Washington, D.C.

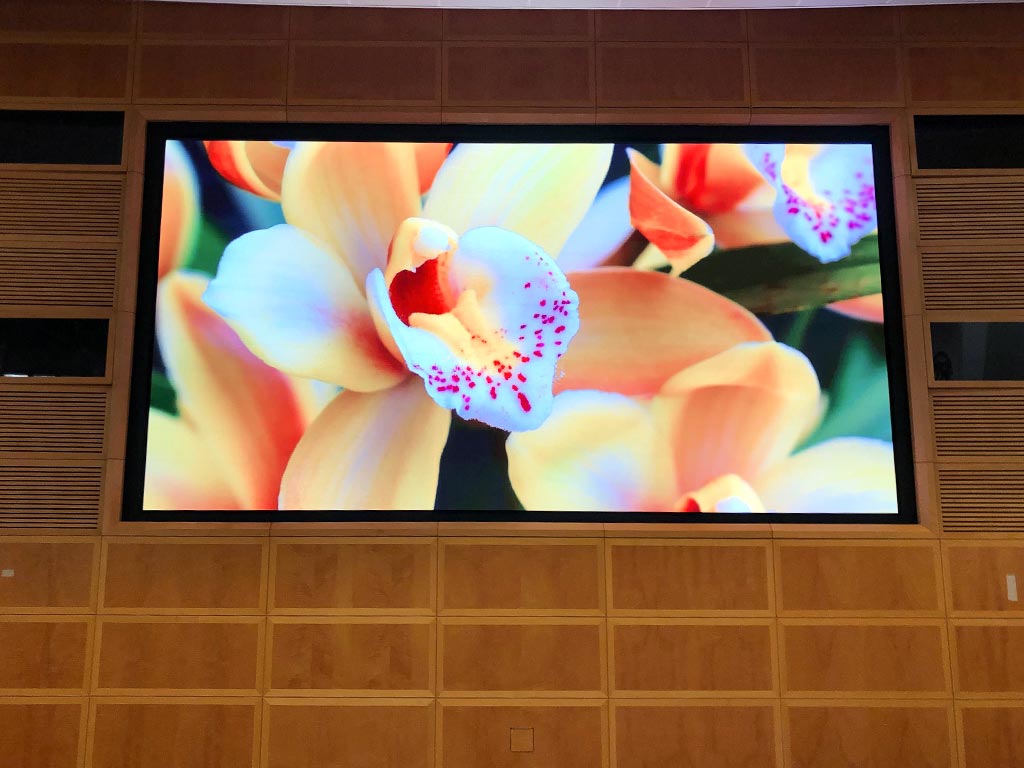

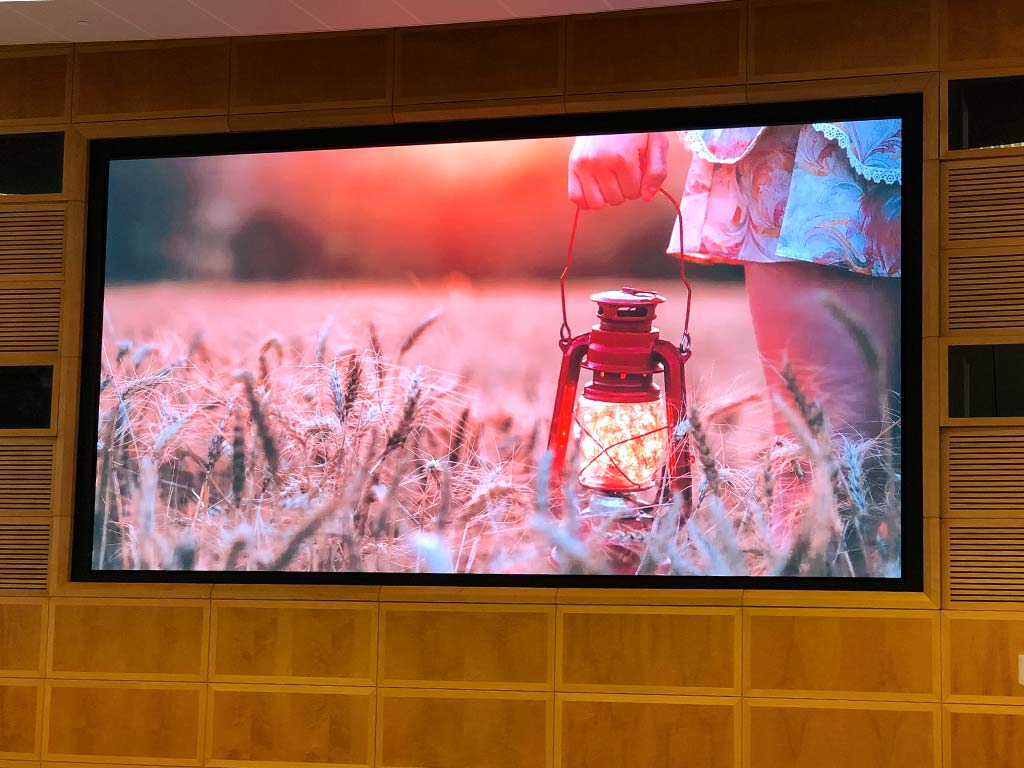

Conference Hall

With digital solutions becoming a more integral part of architecture and workspace modernization, choosing a state-of-the-art video wall allows conference hosts to engage their audiences with dynamic, eye-catching digital experiences.

As part of this growing trend, SNA Displays manufactured and supplied a BOLD™ interior display product for a conference hall inside the government building at 1900 Pennsylvania Avenue. The LED video wall uses a floor stand subframe that is integrated flush against the wood-panel wall. This frame was custom-built and installed by RP Visual Solutions.

The BOLD™ LED display employs a pixel pitch of 2.5 mm and is 9'7" high by 18'4" wide (1,170 pixels x 2,240 pixels) for a surface area of 176 square feet. At that resolution, this means that the display has 2.6 million total pixels.

SNA Displays partnered with Diversified, a commercial integrator, display installer, and channel partner. The wood finish on this display provides a stylistic contrast to the sleek steel frame found in another downtown Washington, D.C., collaboration between SNA Displays and Diversified.

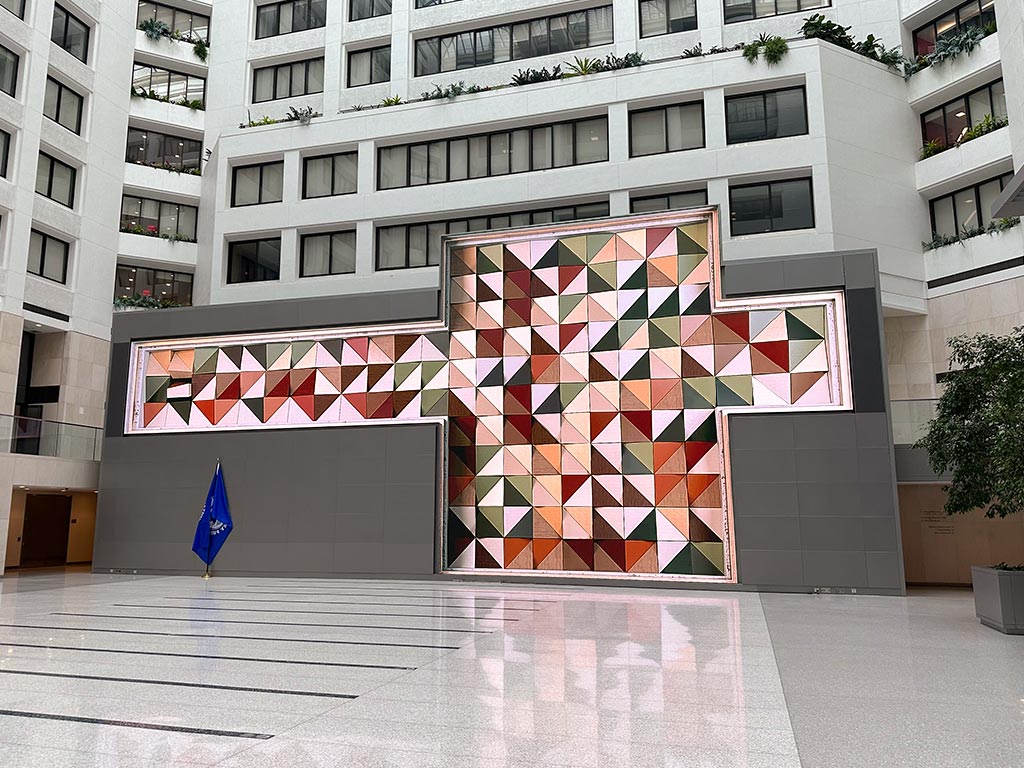

Atrium

SNA Displays collaborated with AVI-SPL to manufacture and install a BOLD™ LED display for the IMF Atrium at 700 19th Street. The roughly t-shaped display features artistic content and is mounted on one end of the atrium at floor level, letting viewers experience it up close and personal or from one of the many office windows facing into the interior courtyard. The atrium itself is a wide floor space with a glass ceiling, allowing for plenty of natural light.

The top of the display extends above the rectangular steel frame to which it is mounted flush. The frame is finished with perforated metal cladding.

The direct-view LED has a 2.5 mm pixel pitch and is composed of three offset panels. The left panel is 9'7" tall by 34'1" wide (1,170 x 4,160). The center and right panels are 31' by 24'11" (3,780 x 2,040) and 9'7" by 9'2" (1,170 x 1,120), respectively. This gives the display 17.7 million total pixels over 1,189 square feet of LED canvas.

Board Room

Working again with integrator AVI-SPL, SNA Displays completed a wall-mounted digital display from its BRILLIANT™ line of interior LED products. The display has a pixel pitch of 1.25 mm and was installed flush into the tiled wall of a circular-shaped board room in the same building as the Atrium. To make the display flush, the display had to be set about 6 inches deep into the wall using a subframe made by RP Visual Solutions.

The display is 8'10" tall by 15'9" wide (2,160 x 3,840) for a total of 139.5 square feet and it has 8.3 million pixels.

About SNA Displays

SNA Displays brings creative visions to life by building high-end digital displays as vivid and dynamic as the imagination. SNA Displays employs a team of SNAPros®—engineers, skilled project managers, systems experts, installation managers, and support staff—whose mission is total project satisfaction.

SNA Displays is headquartered in Times Square and has worked with clients to design and build some of the largest and most recognizable digital spectaculars in the world. Discover how Dreams Live Digitally® at snadisplays.com.

About Diversified

Formed in 1993, Diversified is a full-service systems and media technology integration company. It is an industry leading technology solutions provider that delivers innovative digital media, collaborative, broadcasting, electronic security, and OTT solutions to a global clientele across a wide array of markets. For more information, visit diversifiedus.com.

About AVI-SPL

AVI-SPL has been in business since 1979, providing digital workplace services and designing, integrating, managing, and supporting on-site and cloud-based communications and collaboration technologies. Find out more at avispl.com.

About RP Visual Solutions

Established in 2005, RP Visual Solutions specializes in the design, engineering, fabrication, testing, and installation of custom mounting solutions for visual displays across a variety of verticals. Learn more at rpvisuals.com.

Product

Project Location

1900 Pennsylvania Avenue,

Washington, D.C.
